DCS-50S
500-1000 bags / hour
5-50KG
AC 380V, 50HZ, 2.5KW
±0.1
1030mm*780mm*2480mm
1. Feeding
2. Weighing
3. Bagging
4. Sewing / Sealing
5. Finished Product Output

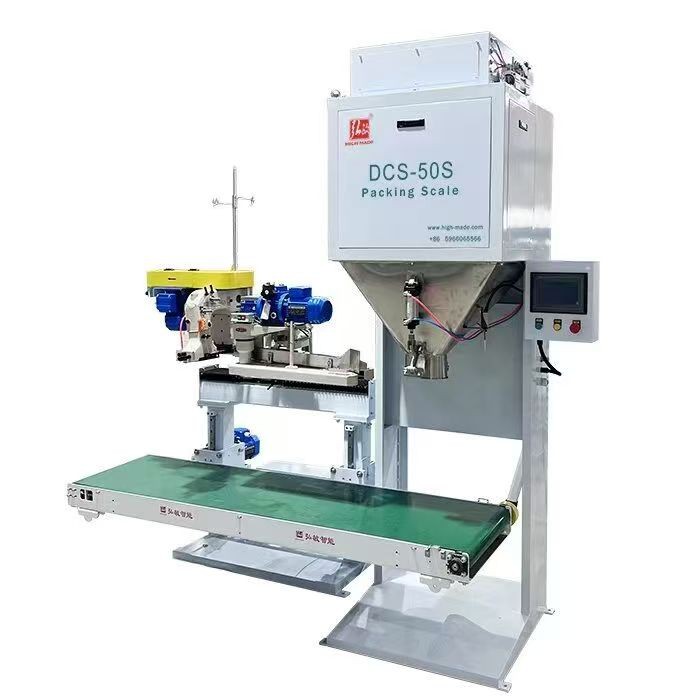

Semi-Auto Woven Sack Bag Packaging Machine
Amid the wave of industrial automation production upgrading, the accuracy and efficiency of quantitative packaging directly determine an enterprise's production capacity and cost control. This intelligent high-precision electronic packaging scale is precisely tailored to meet the packaging needs of bulk materials across multiple industries including grain, chemical engineering, and food. With its intelligent design and stable performance, it serves as a core piece of equipment for enterprises to achieve automated transformation of the packaging process, helping to enhance product standardization and market competitiveness.
The equipment adopts a high-precision weighing sensor that is deeply integrated with a high-definition touch screen controller. The operation interface is intuitive and clear, allowing one-click setting and modification of parameters such as packaging weight and speed. Even novice operators can master it quickly, significantly reducing training costs. Built-in high-performance adaptive software is equipped with functions of automatic drop correction, over-tolerance alarm and fault self-diagnosis. It conducts real-time error calibration during dynamic weighing, and triggers timely early warning and shutdown in case of abnormalities, thus ensuring packaging accuracy and continuous operation of the production line.
The product boasts comprehensive data management capabilities. It can automatically count the number of packaged bags and cumulative packaging volume, supports real-time printing and multi-interface data communication, and can seamlessly connect to the enterprise's MES system to achieve production traceability, providing accurate data support for scheduling decisions. Its wide quantitative range of 5-50Kg, combined with an automatically liftable conveying and sewing machine, is suitable for various materials such as granules, powder and flakes. With a packaging speed of 500-1000 bags per hour, it realizes integrated and efficient operation of weighing, conveying and bag sewing.
The equipment adopts imported pneumatic actuators, featuring stable and noiseless operation as well as easy maintenance. Its oil-free lubrication design prevents material contamination. Components in contact with materials are made of imported stainless steel, complying with food-grade hygiene standards, and are corrosion-resistant and durable. It has superior core parameters: power supply of AC 220V, 0.15Kw; air consumption of 0.4~0.6MPa; equipment dimensions of 1030mm*780mm*2480mm; and packaging accuracy of ±0.1. It combines reliability and environmental-friendliness, and is supported by comprehensive pre-sales and after-sales services to escort production throughout the entire process.
